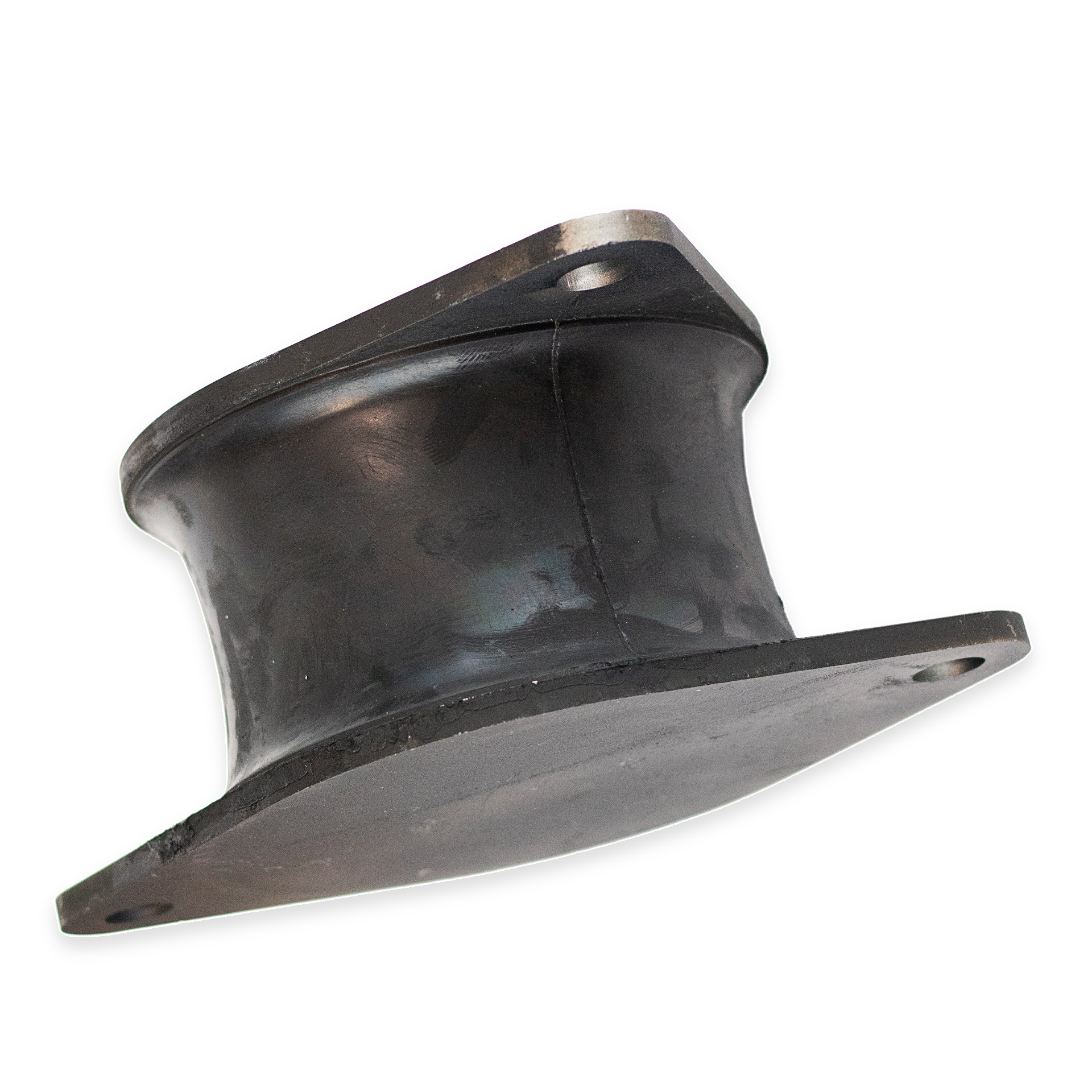

Caterpillar Drum Mount 7-074 – side view

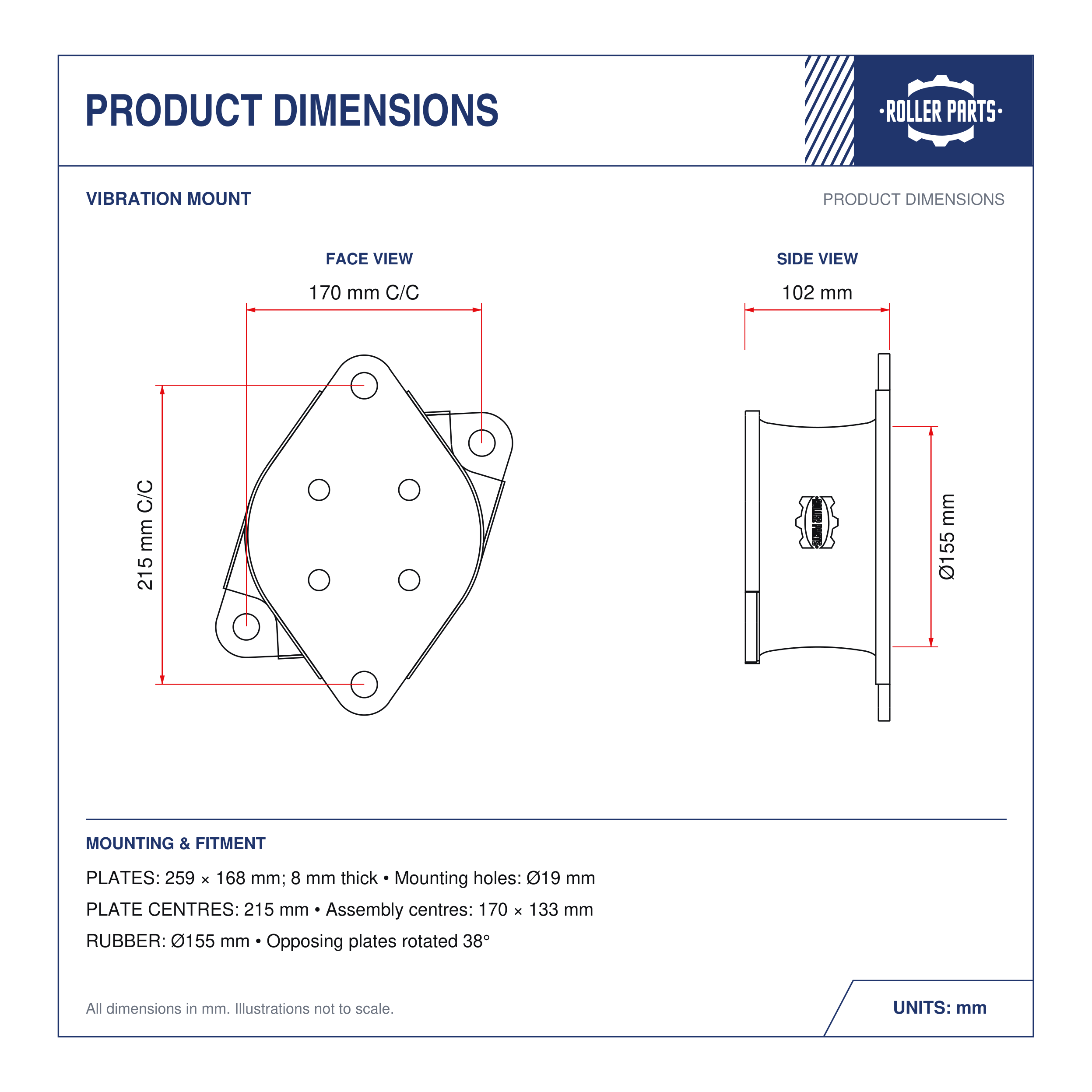

Caterpillar Drum Mount 7-074 - dimension drawing
Caterpillar Drum Mount 7-074 – angled view
Caterpillar Drum Mount 7-074 – top view
Caterpillar Drum Mount 7-074 – side view
Caterpillar Drum Mount 7-074 - dimension drawing

CAT Drum Mount

Part Number: 7-074

Frequently Bought Together

Same Day Dispatch!

Need Help? 1300 799 990

Description

The CAT Drum Mount 7-074 provides a flexible, vibration-isolating connection at the drum mounting point on compatible Caterpillar rollers.

60 Shore A rubber is bonded to 8 mm zinc-plated Grade 250 steel plates, combining a resilient isolating element with defined steel mounting surfaces. Its offset mounting plates combine a compact round rubber element with two-point mounting ends.

Key Features & Product Details

  • Specified rubber hardness: 60 Shore A rubber provides the flexible vibration-isolating element.
  • Grade 250 steel plates: 8 mm laser-cut plates form the mounting surfaces and fixing points.
  • Zinc-plated finish: a protective coating on the steel mounting plates.
  • Bonded construction: dedicated plate holes allow the rubber to bond through the steel plates.
Measurements
Measurement Specification
Overall thickness 102 mm
Steel plate (L × W × T) 259 × 168 × 8 mm
Rubber body diameter 155 mm
Mounting holes per plate 2 × Ø19 mm
Mounting-hole centres per plate 215 mm
Relative plate rotation 38°
Compatible Models
Make / groupCompatible model
CaterpillarCS-78B
CaterpillarCS-79B
CaterpillarCS79B
CaterpillarCS78B
CaterpillarCS-74B
CaterpillarCS-76B
CaterpillarCP76B
CaterpillarCP-74B
CaterpillarCP74B
CaterpillarCS74B
CaterpillarCS20
CaterpillarCP16
CaterpillarCS16
CaterpillarCS17
CaterpillarCS76B
CaterpillarCS19
OEM Part Numbers
Make / groupOEM part number
Caterpillar358-0286
Caterpillar3580286
Caterpillar658-1664
Caterpillar6581664
